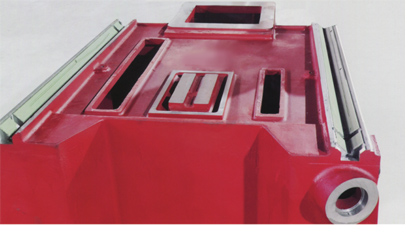

铸件（HT250）

　　巨冈磨床主机座、工作台等全部铸件体均采用HT250高等级灰口铸铁，并经由有限元分析与计算，达到提高刚性与质量的工程需求，每件铸件均经过高温回火和6个月以上的自然时效方式消除内应力(铸件在炉内升温至550一570，保温5~6H,再以每小时50度降至100度以下)，机床床体稳定不变形，并具有良好的抗弯及抗扭应力，确保了巨冈磨床持久工作精度。
　　Al our castings such as main engine seat , workbench , etcof grinders are HT250 high - grade gray cast iron , whichcan meet the engirieering demands of imp foving rigidityand quality through finite analysis and calculations . Everycasting has undergone high temperature tempering andnatural failure of over 6 months in order to eliminate internalstress ( al castings are heated to 550-570 in the fumacemaintain temperature lor 5-6H, and then drop below 100Cata rate of 50'C per hour ) so that the machine body can bestable and free of defomation, and beoome superior in temsof resistance to bending and torsion stress toensurethe longte mWorking acuracy of the grinder.

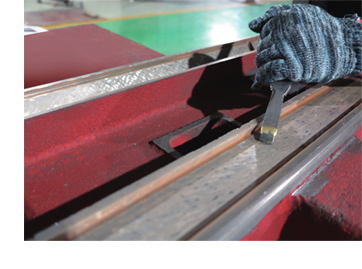

人工铲刮

　　巨冈磨床采用硬轨全人工刮研工艺，岗位员工工作经验均达10年以上，铲刮部件精度基准点控制在每平方厘米10一12点范围内，导轨面贴合进口高品质铁氟龙增加耐磨性，减低阻尼系数，能给机床运行提供足够的研磨精度保证
　　Our arindina machines are al fited with fuly manual scraping process of hard track . Al workers have the workincexperence of over 10 years . The precision reference point of the scraping parts is controlled within 10-12points percm The guide ralil surface is ited with imported hioh -auality Teon to enhance abrasion resistance and reducedamping coeficient , so as to ensure enough grinding accuracy far machine running .

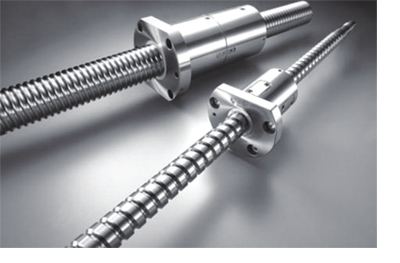

滚珠丝杠

　　巨冈磨床所采用的丝杆均为P3级高精度滚珠丝杆滚动摩擦系数小，传动效率高，其效率可达90%以上，摩擦系数在0.002~0.005;有效降低摩擦系数与速度的差异，起动扭矩接近运转扭矩，所以工作平稳无冲击，磨损小且寿命长，可用调整装置调整顶紧力，传动精度与刚度均得到提高具有传动可逆性，即可将回转运动变为直线运动又可把直线运动变为回转运动，有效提高机床工作精度和淑咙址墒淆揉按定性。
　　The screws of our grinders are as of 的 high precisiontype , which is featured by low rolling friction ooefficientand high transmission efficiency ( above 9096).Thefriction coefficient fro .002-0.005:it can reduce theciference between friction ooefficient and speed effectivelyand the starting torque is similar to running torquewhich oontributes to stable and impact - free working ，litle abrasion and long service life , Moreover, the gapcan be adjusted by adjustment device in order to imp Tove transmission accuracy and rigidity . In additiontransmission reversibility is designed to change therotary motion into linear moticn or vice versa , so asto improve the workingaccuracy and stability of themachine dramaticaly .

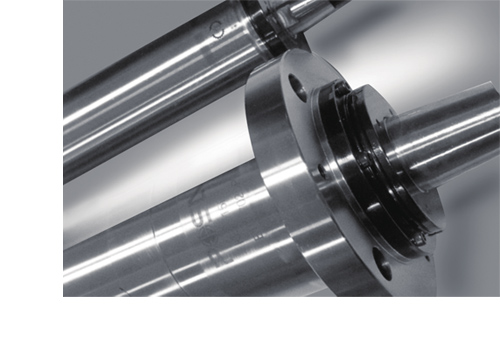

主轴性能表述

　　巨冈磨床全系列所使用的每一支主轴，都完全由台湾知名品牌 POSA、HS 提供，主轴配装日本NSK-CP4级精密斜角滚珠轴承，保证主轴偏转远低于0.002mm，其主轴工作稳定性和耐用性可满足机床正常使用十年以上
　　Each spindle used in the whole series of Jugang grindingmachines is completely oomposed of Taiwan famousbrands POSA and HS provide, and the spindle is equippedwith Japan NSK-CP4 precision bevel bal bearing ensuresspindle deflection It is far less than 0.002mm, and itsworking stability and durability can be Meet the normaluse of the machine tool for more than 10 years
